Product Advantage:
PPS material， good hear dissipation -Made of high-quality PPS material, ensuring excellent heat dissipation and long-lasting durability even under continuous operation.

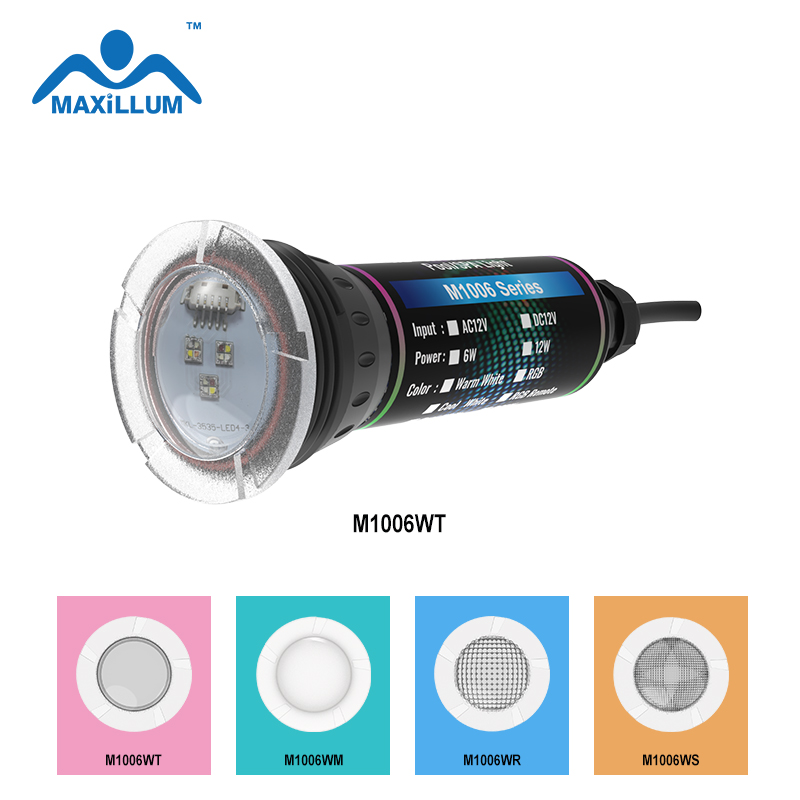

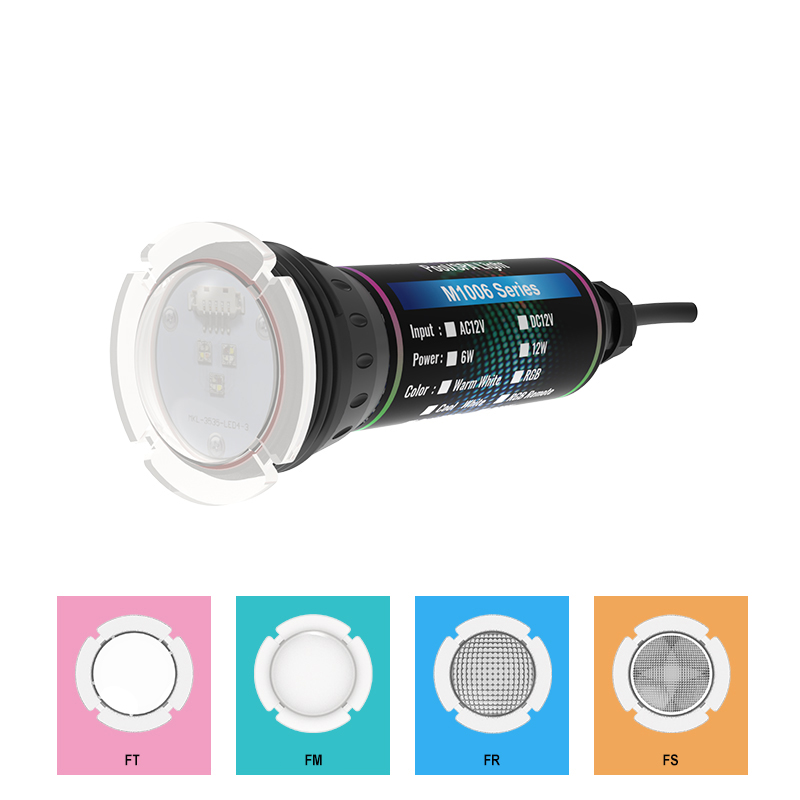

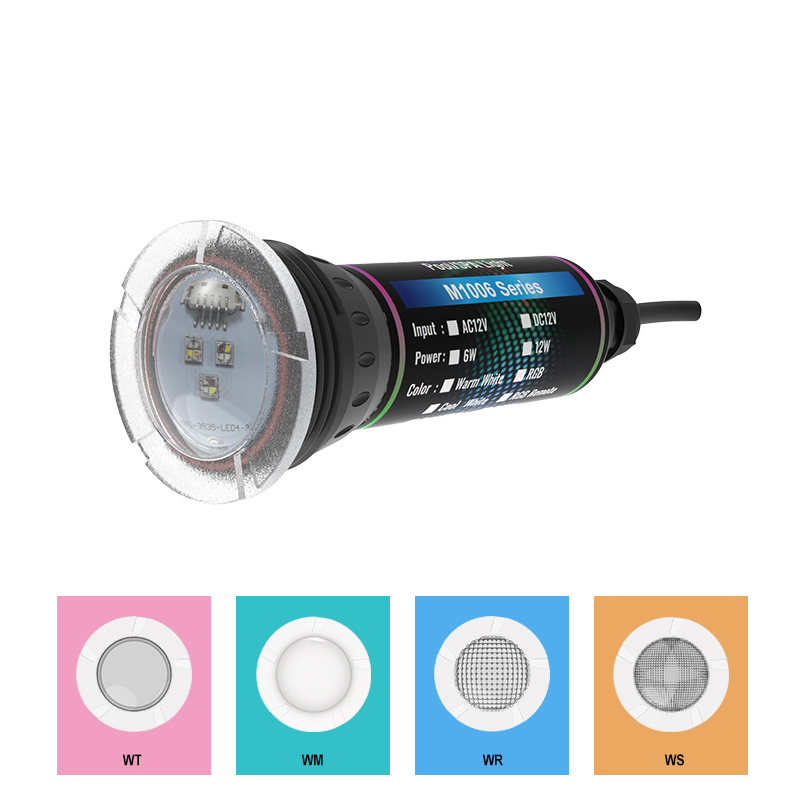

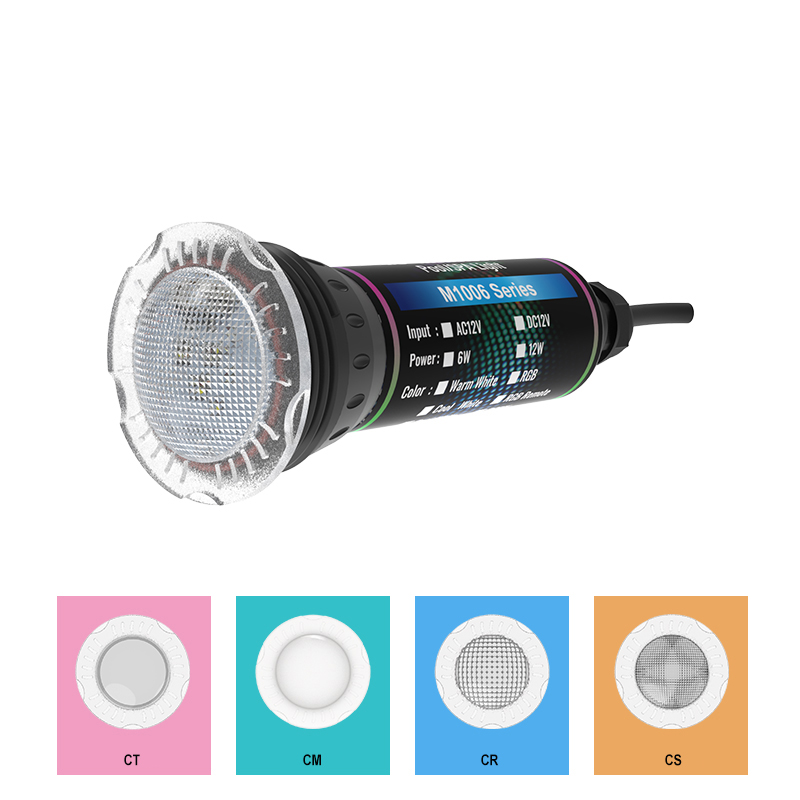

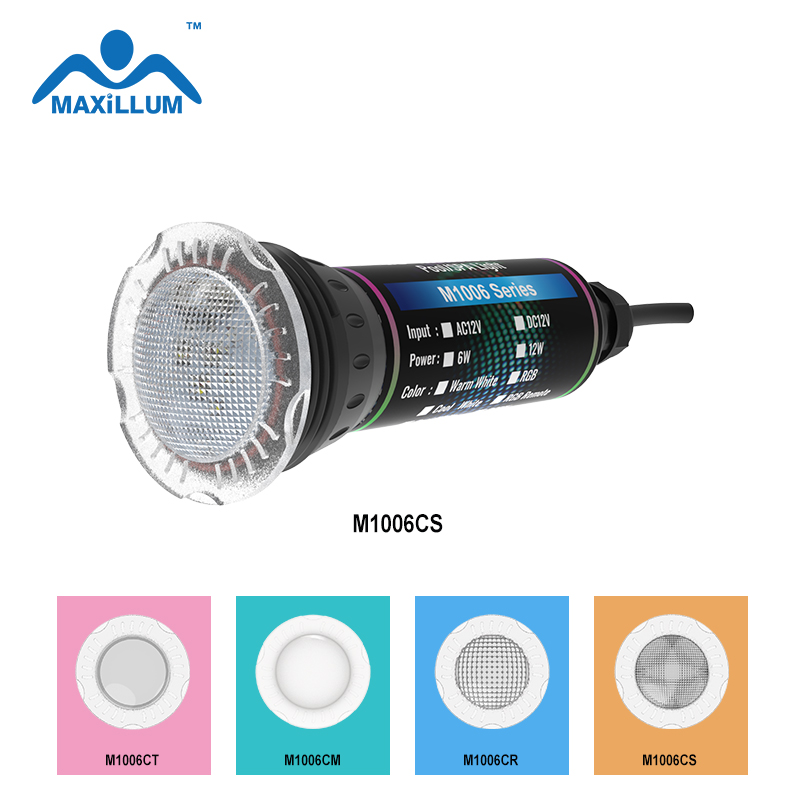

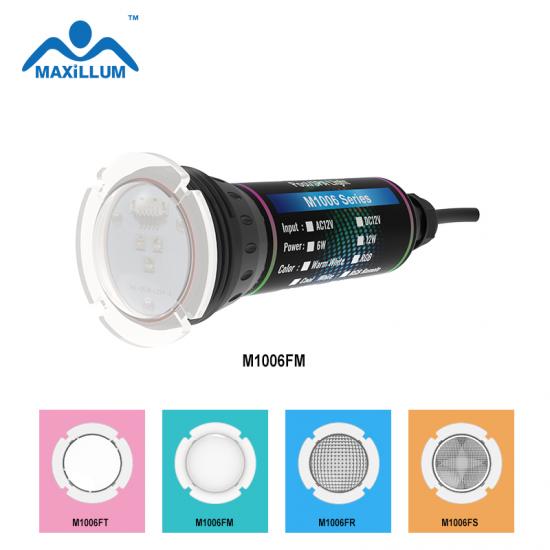

Multipple Interchangeable covers - Designed with multiple interchangeable covers, giving you flexibility to customize the appearance to match different pool style and preferences.
Brillient SMD3535 / SMD5050 LED, color mixed better - Equipped with brilliant SMD3535 / SMD5050 LEDs, delivering vivid brightness and superior color mixing performance for a stunning underwater lighting effect.
Multiple color programs for your selection, we have color program compatible with American brands - Offering multiple dynamic color programs for your selection, including options fully compatible with popular American brand controllers, making integration effortless.
Specification:

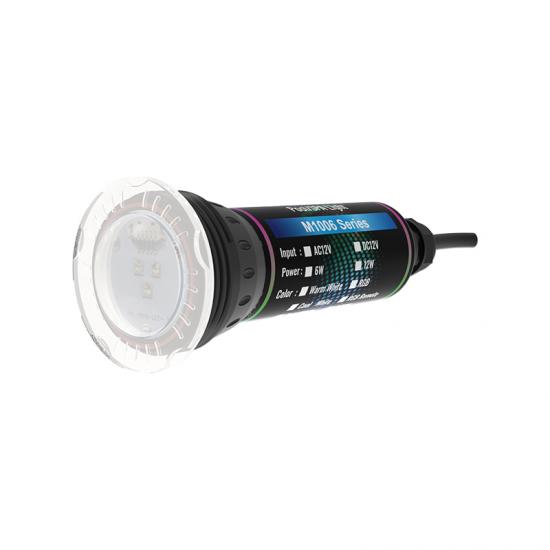

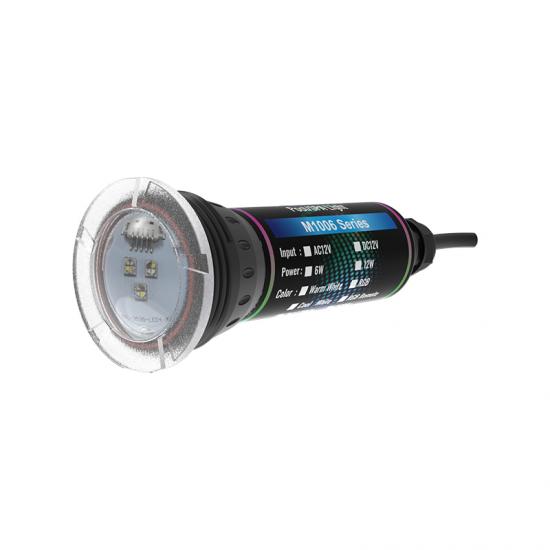

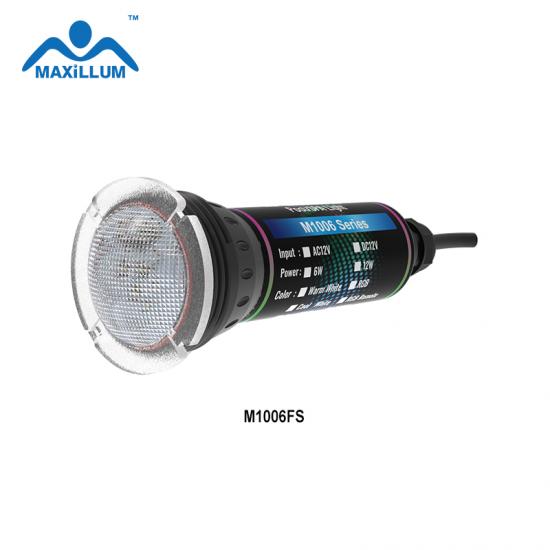

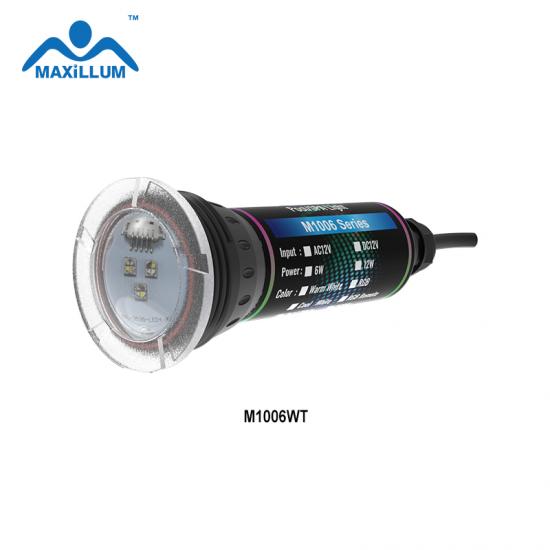

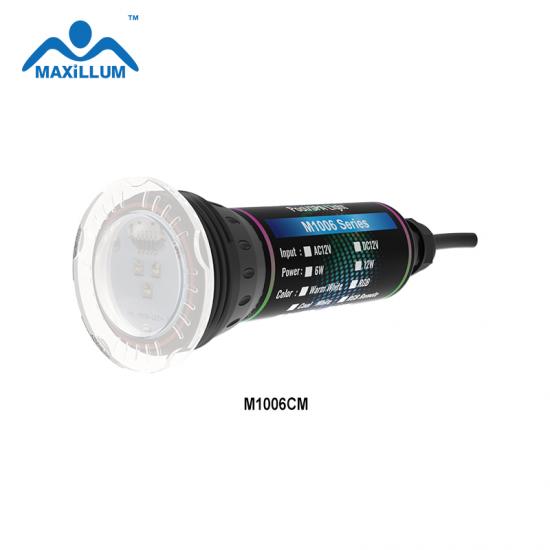

Model
M1006
Applicable Scene
Concrete pool, Fiberglass Pool, Vinyl Liner pool
Body Material
PPS
Lens Material
PC
Dimensions
Ф55 x 147.5mm
Beam Angle
120°
Voltage
12V (AC,DC)
Power
12W
18W
LED Bead Size
SMD3535
SMD5050
Led Chips Number
3pcs
3pcs
Lumen(6400K)
850lm
1000lm
Lumen(DW)
500lm
600lm
Lumen(3000K)
750lm
900lm
Installation:

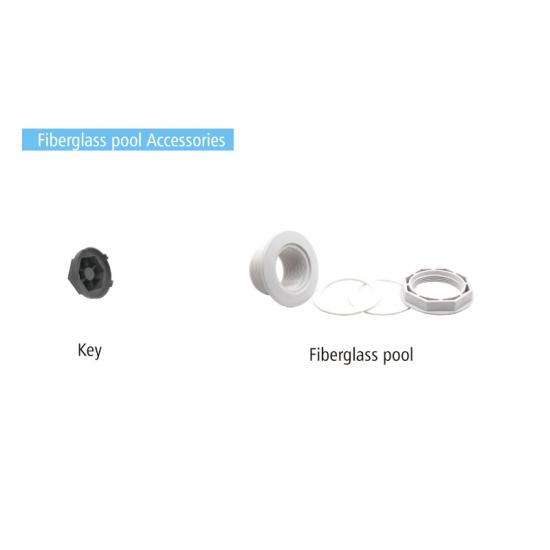

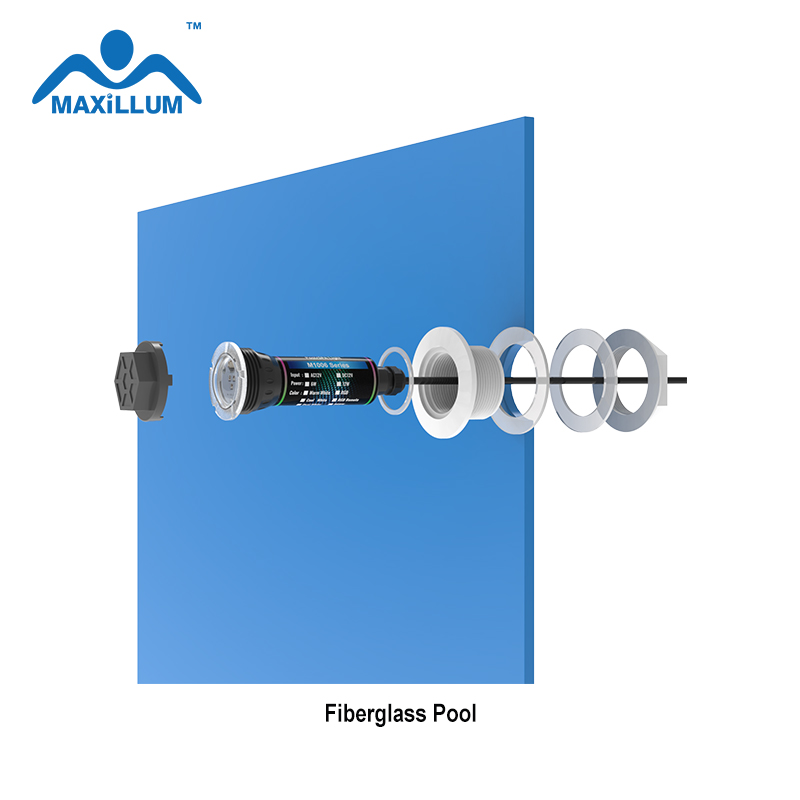

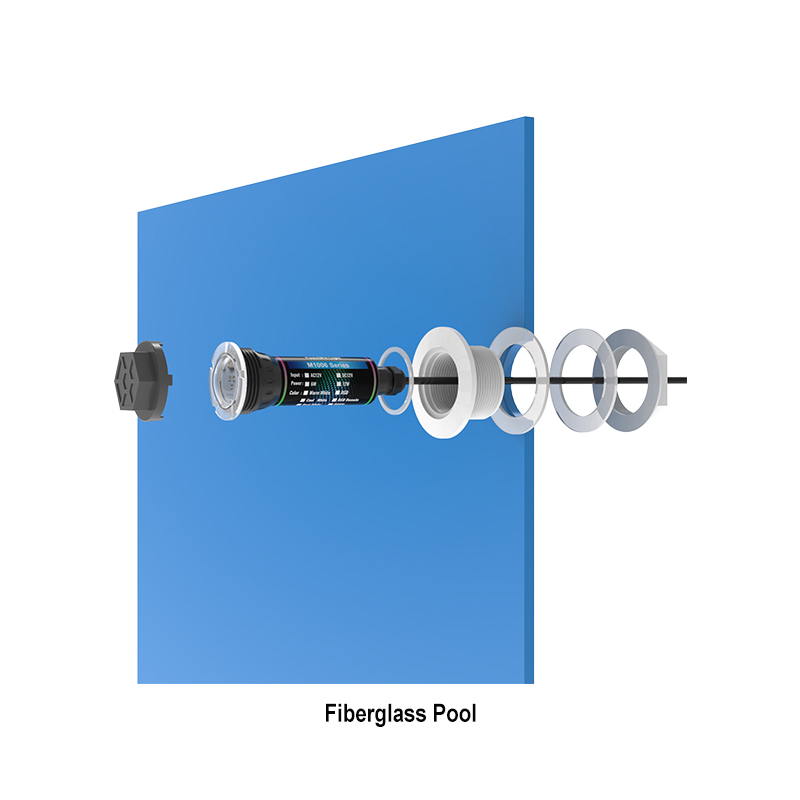

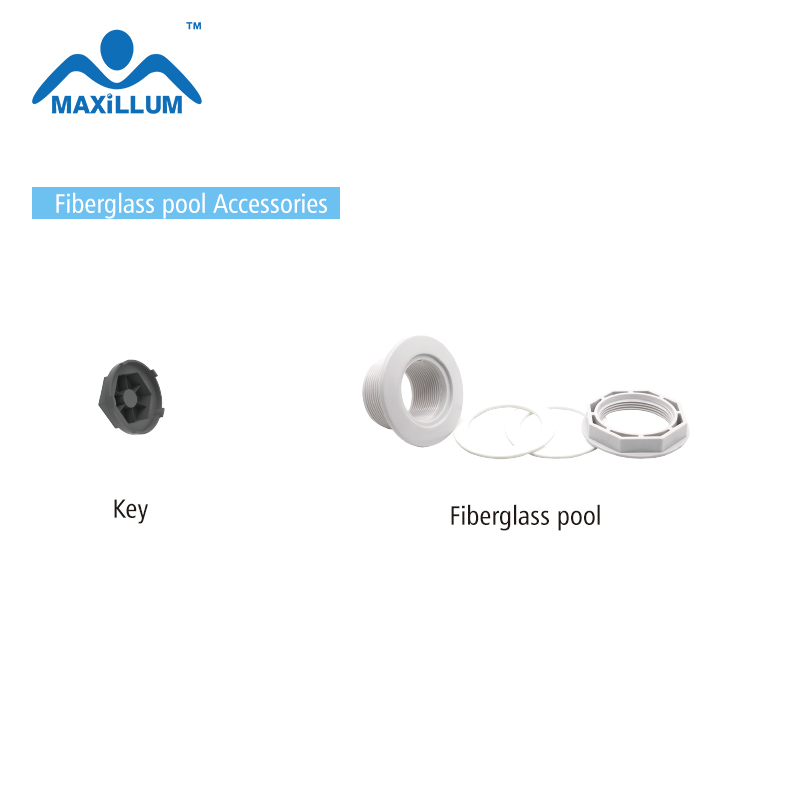

We provide multiple fitting options tailored for different types of swimming pools. No matter if it’s a concrete structure, or a fiberglass shell, dedicated installation solutions are available.

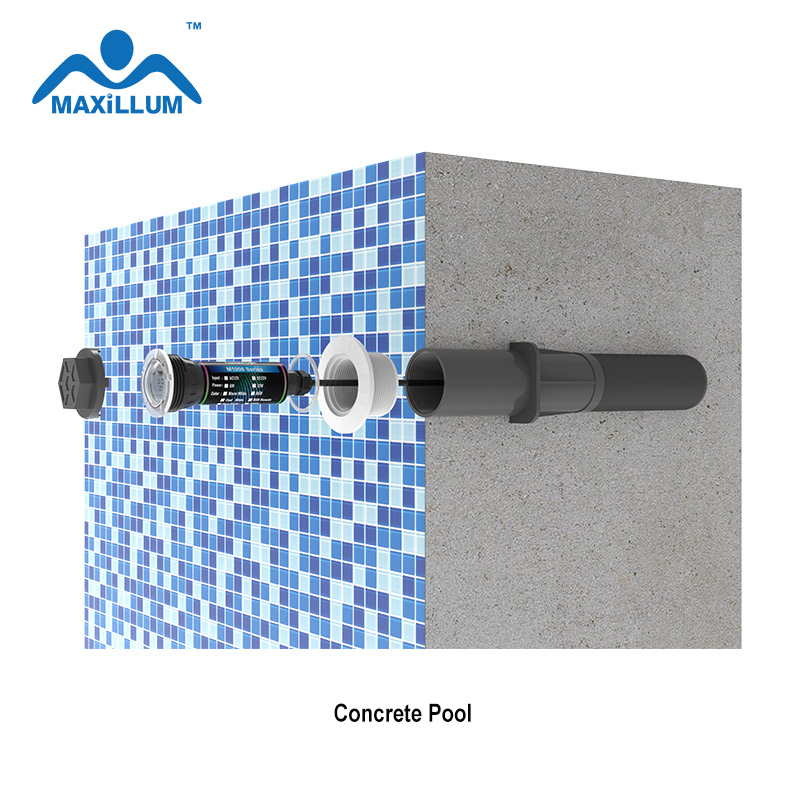

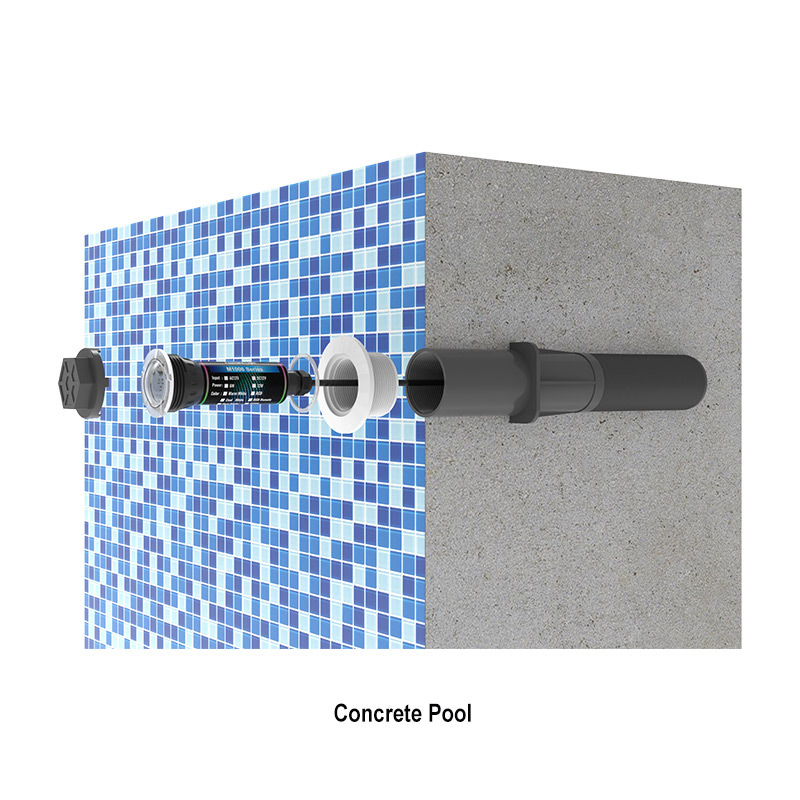

For concrete pools, builders should embed the 2-inch pipe during construction. During lamp installation, position the silicone seal at the lamp’s front end, insert the unit into the 1.5-inch thread, and secure it firmly using the special tool.
