LED Underwater Lights

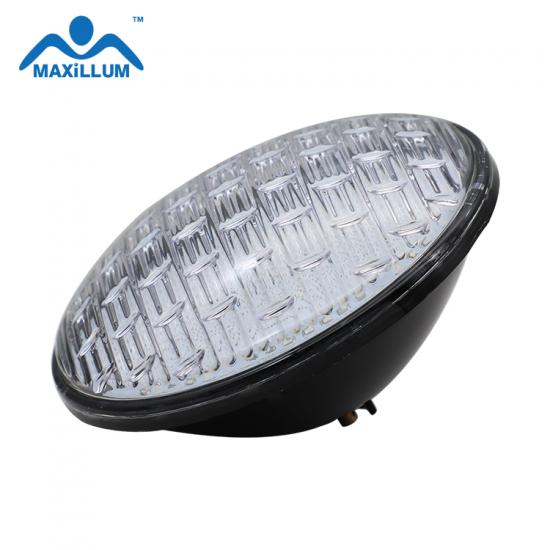

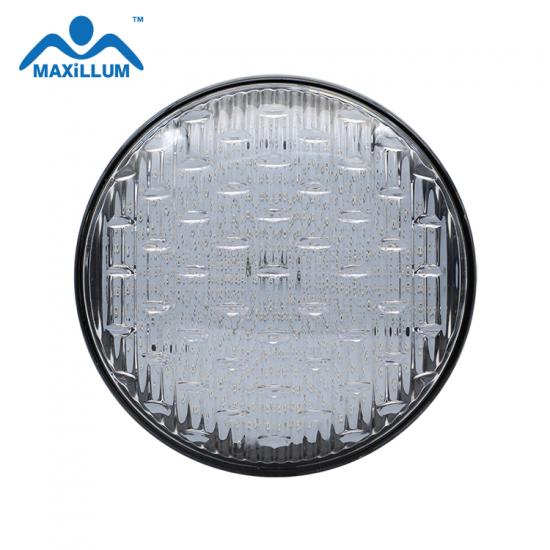

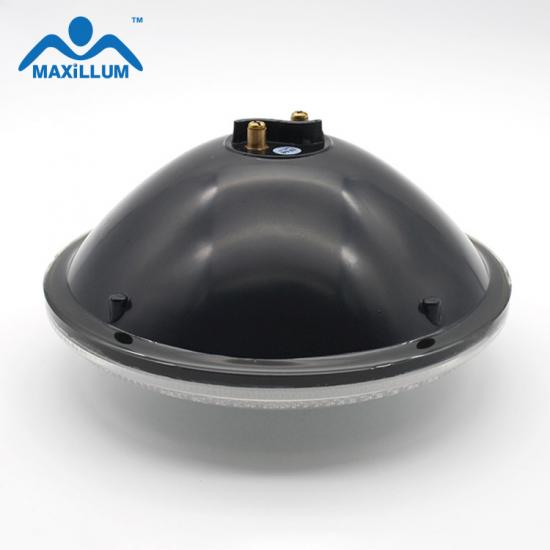

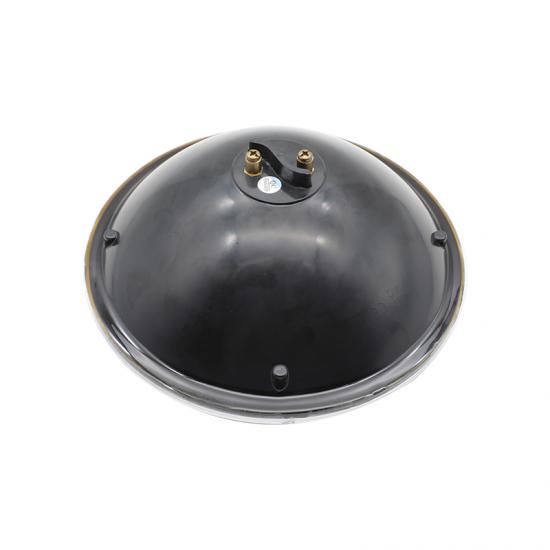

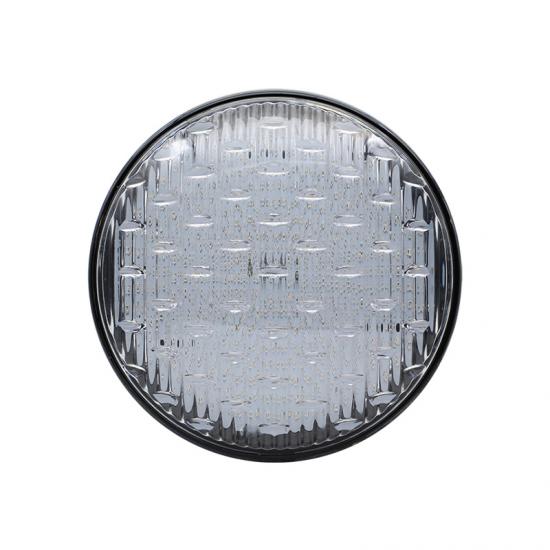

Plastic LED PAR56 Bulb

18W RGB Plastic Swimming Pool lamp

Underwater light Plastic PAR56 ABS+PC , Ultrasonic melting , Epoxy blue protect, IP68 SMD LED , long life
  • item no.:

    P1001-S252RGB
  • lead time:

    15-20 days
  • product orgin:

    China
  • shipping port:

    China
  • payment:

    T/T , LC
  • color:

    black
  • MOQ:

    20
products details

18W RGB Swimming Pool light , plastic LED PAR56 bulb


TECHNICAL PARAMETER

Item:P1001-S252RGB

Voltage: AC 12V

Frequency: 50-60Hz

Power: 18W

Efficiency: 0.85

Draving Mode: Constant current

Shell material: ABS+PC

LED type: SMD2835

LED color / quantity : RGB 252pcs

LED Lumen : 700lm

Light collocating mode: LED without lens

Beam angle: 120°

LED PN junction temperature : <65 ℃

Working temperature :-40℃~55℃

Protection : IP68

Life span: 25000 hours

Certification: CE & RoHS

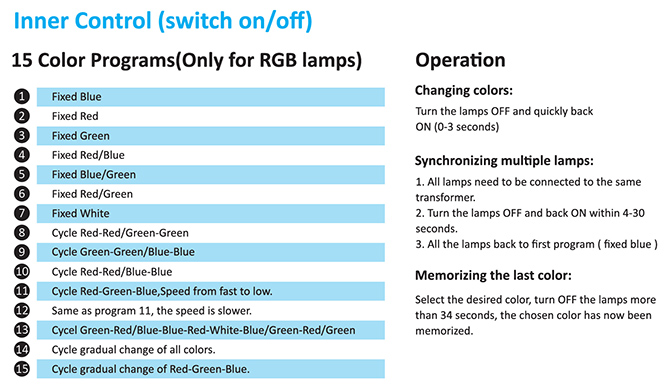

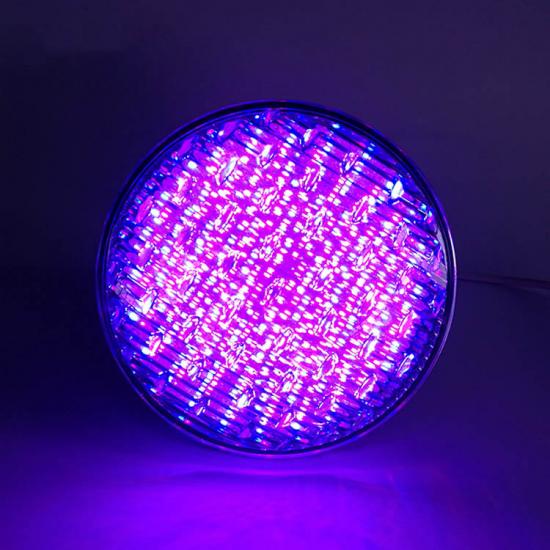

RGB ON/OFF WORKING PROGRAM

Cycles Working 15 Modes

1). Fixed blue

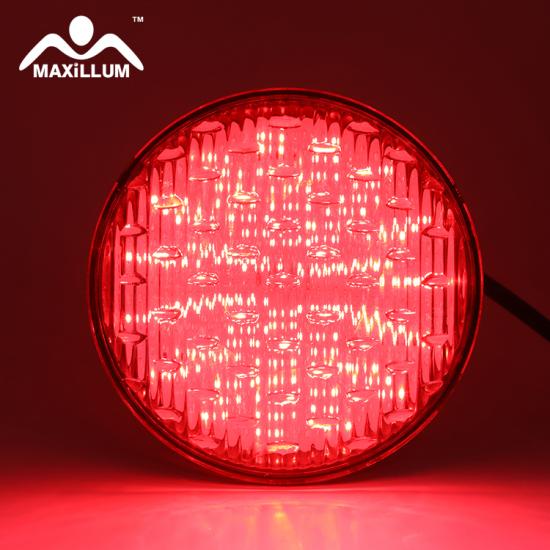

2). Fixed red

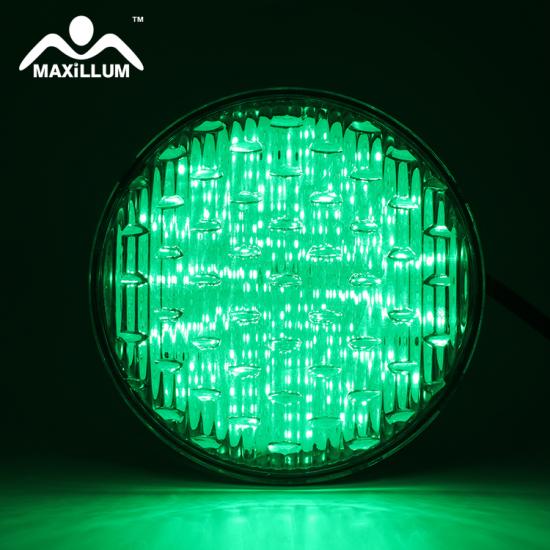

3). Fixed green

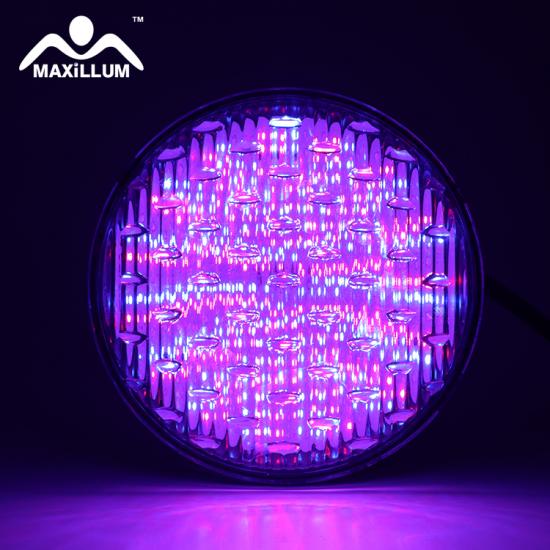

4). Fixed red/blue

5). Fixed blue/green

6). Fixed red/green

7). Fixed white

8). Cycle red-red/green-green.

9). Cycle green-green/blue-blue.

10). Cycle red-red/blue-blue.

11). Cycle red-green-blue. The speed change goes from low to quick.

12). Cycle red-green-blue. The speed change is slower than Mode 11.

13). Cycle green-red/blue-blue-red-white-blue/green-red/green.

14). Gradual change of all colors

15). Gradual change of red-green-blue



Operation:

Changing colors:

Turn the lights OFF and quickly back ON ( 0-3 seconds ).

Synchronizing multiple lights:

1. All the lights should be connected to the same transformer.
2. Turn the lights OFF and back ON within 5-30 seconds.
3. All the lights will be at the fifirst mode( fifixed blue )
Memorizing the last mode:
1. Reach the desired color by the “Changing colors” procedure.
2. Turn OFF the light for more than 34 seconds. The selected color has now been memorized.


PACKING

20pcs/ctn

carton size : 66.5*42.5*42cm

N.W. : 8KG

G.W. : 13KG
