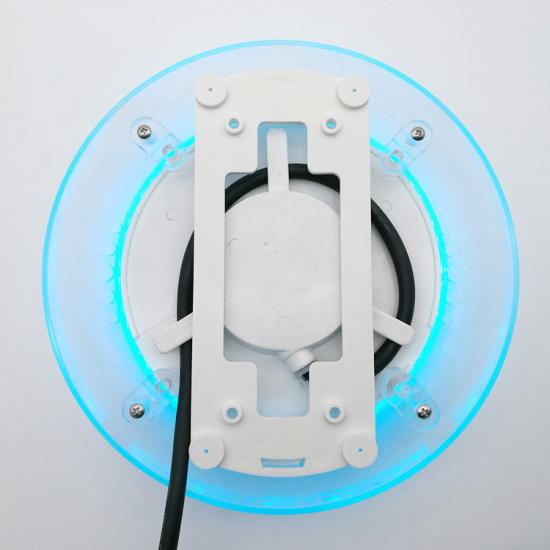

Epoxy Resin Wall Mounted Pool Light

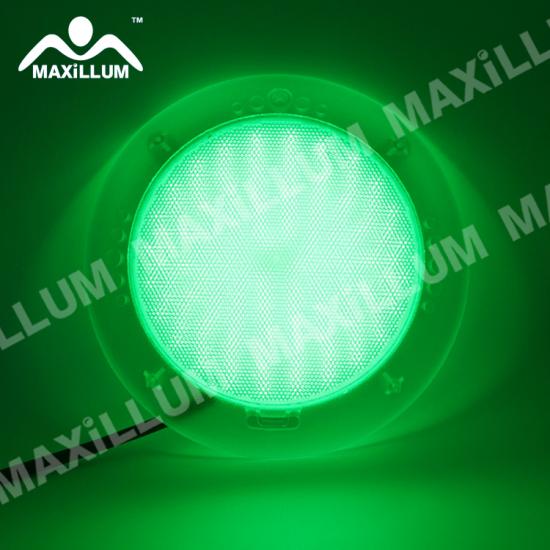

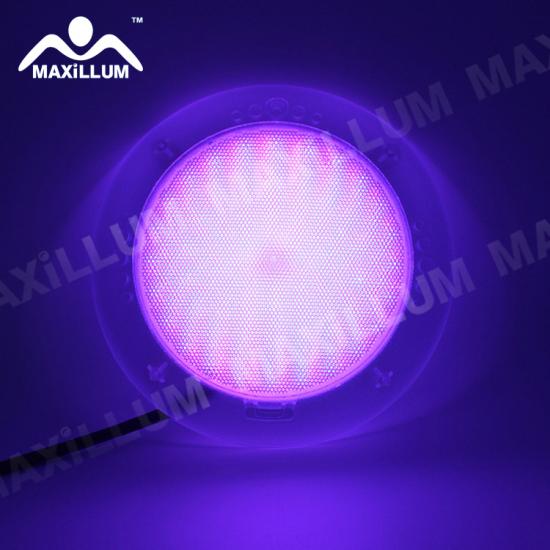

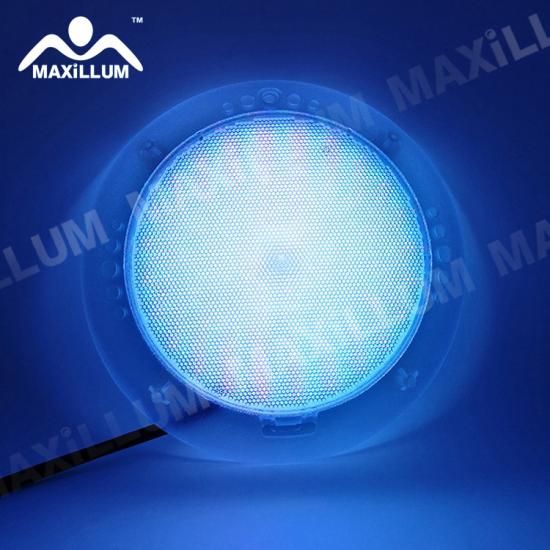

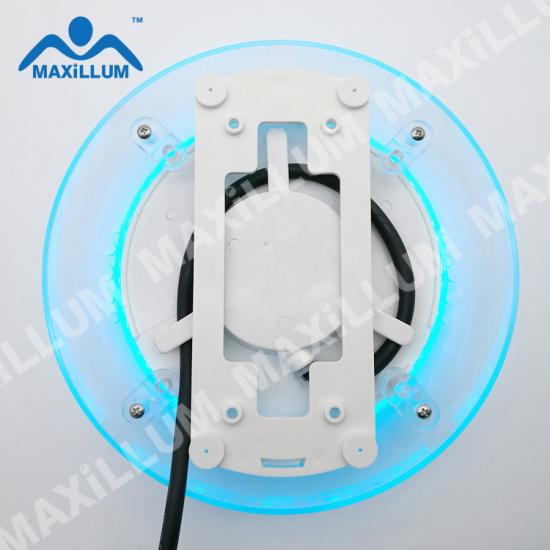

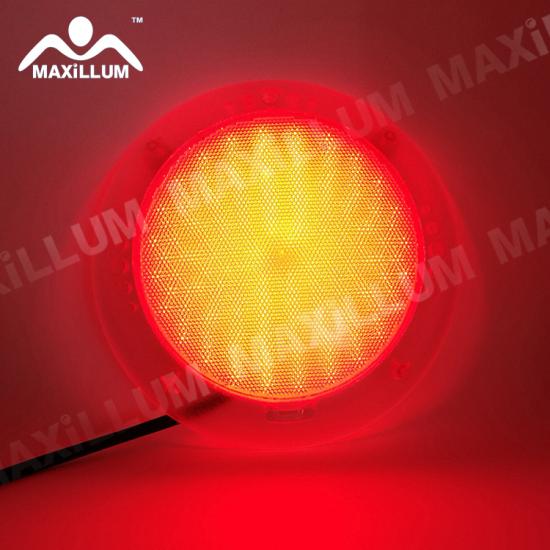

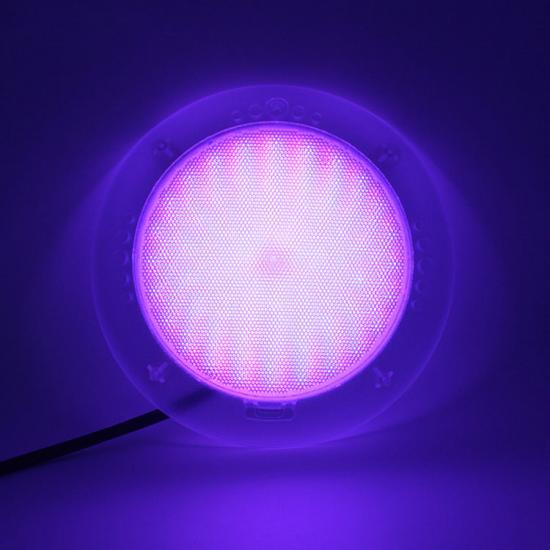

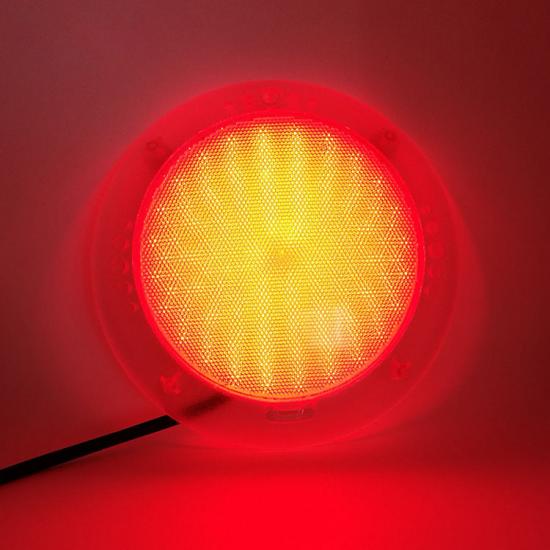

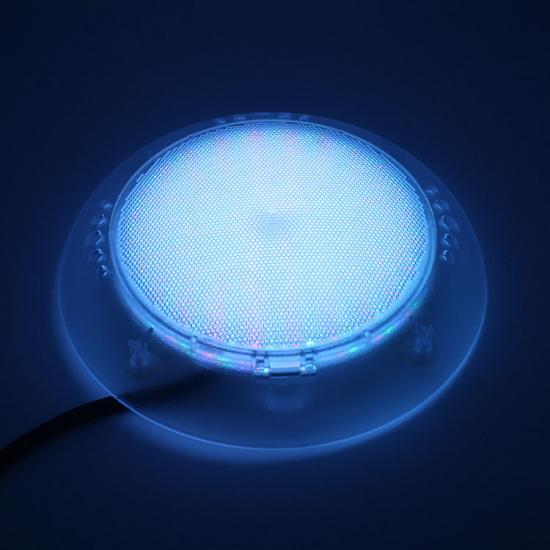

Epoxy Resin Wall Mounted Swimming Pool Light RGB 40W

Swimming Pool Light , wall mounted type , the panel is filled with epoxy resin , IP68 RGB color , 40W . ON/OFF control PC housing , with small len Dia240mm , H49mm
  • item no.:

    W2001-S513RGB
  • lead time:

    15-20 days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • payment:

    T/T , LC
  • color:

    RGB
  • MOQ:

    10
products details


TECHNICAL PARAMETER

Swimming Pool Light , Epoxy Resin filled wall mounted light


Item: W2001-S513RGB

Voltage: AC 12V

Frequency: 50-60Hz

Power: 40W

Efficiency: 0.825

Draving Mode: Constant Current

Shell material: PC , with small lens

LED type: SMD2835 LED

LED color / quantity : RED 171pcs, blue 171pcs, green 171pcs , total 513pcs

LED Lumen : 1700LM

Light collocating mode: without  lens

Beam angle: 120°

Diameter : 240mm

Cable: 2M 2*1.0mm2

LED PN junction temperature : <65 ℃

Working temperature :0℃~40℃

Protection : IP68

Life span: 50000 hours

Certification: CE & RoHS



RGB ON/OFF WORKING PROGRAM

Cycles Working 15 Modes

1). Fixed blue

2). Fixed red

3). Fixed green

4). Fixed red/blue

5). Fixed blue/green

6). Fixed red/green

7). Fixed white

8). Cycle red-red/green-green.

9). Cycle green-green/blue-blue.

10). Cycle red-red/blue-blue.

11). Cycle red-green-blue. The speed change goes from low to quick.

12). Cycle red-green-blue. The speed change is slower than Mode 11.

13). Cycle green-red/blue-blue-red-white-blue/green-red/green.

14). Gradual change of all colors

15). Gradual change of red-green-blue

***********************************************************


RGB REMOTE CONTROL WORKING PROGRAM

Cycles Working 13 Modes

Number 1.ON

Number 2.OFF

Number 3. Fixed blue

Number 4. Fixed red

Number 5. Fixed green

Number 6. Fixed red/blue

Number 7. Fixed blue/green

Number 8. Fixed red/green

Number 9. Fixed white

Number 10. Cycle red-red/green-green.

Number 11. Cycle green-green/blue-blue.

Number 12. Cycle red-red/blue-blue.

Number 13. Cycle red-green-blue. The speed change goes from quick to low.

Number 14. Cycle green-red/blue-blue-red-white-blue/green-red/green.

Number 15. Gradual change of all colors



RGB  Control  Options:

1. ON/OFF control

15 kinds of working program , ON/OFF change color , with memory


2. Remote Control

15 keys remote controller . No.1 ON , No.2 OFF , No3-No.15 13 working mode

suit for famlily pool


3. Remote Control Box

CB006(max 120W ) , CB008 (max300) . 100% synchronization


4. WIFI Control BOX

Operate the lamp by cell phone with APP .

DIY the mode . The lamps change color with the music .
