Wuxi Maxillum Scien-Tech Lighting Co., Ltd.
LED Underwater Lights
SS Wall Mounted Pool Light

Ultra Thin Flat LED pool light 18Watt RGB

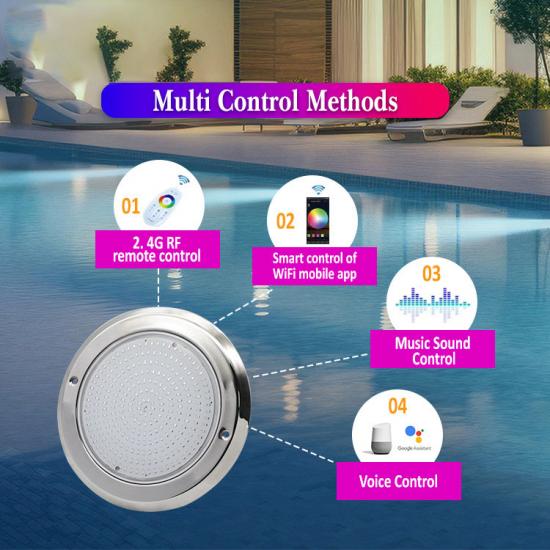

Ultra thin 12mm thickness LED pool light, resin filled LED panel with SS frame, 230mm diameter, 18Watt, RGB color on/off control mode
  • item no.:

    W4013-S252RGB SS
  • lead time:

    15-20 days
  • product orgin:

    China
  • shipping port:

    Shanghai
  • payment:

    T/T , LC
  • color:

    SS white
  • MOQ:

    10 pcs
products details


TECHNICAL PARAMETER

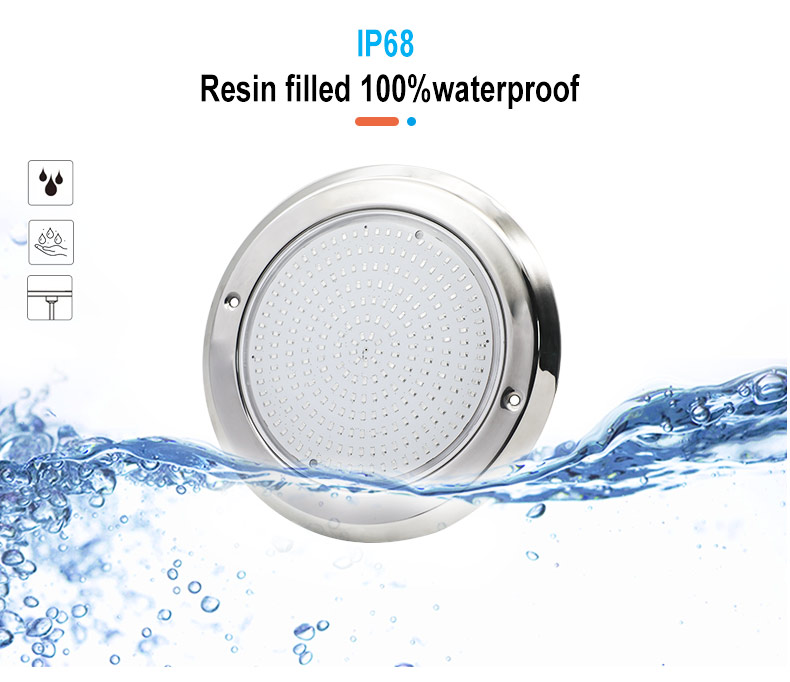

Ultra thin and flat LED pool light , Epoxy Resin filled wall mounted light

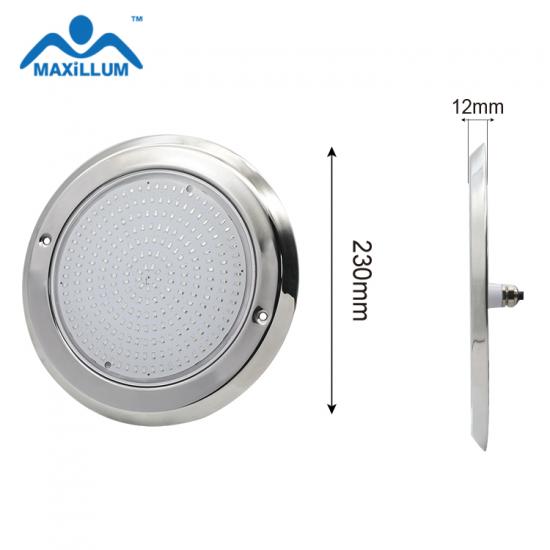

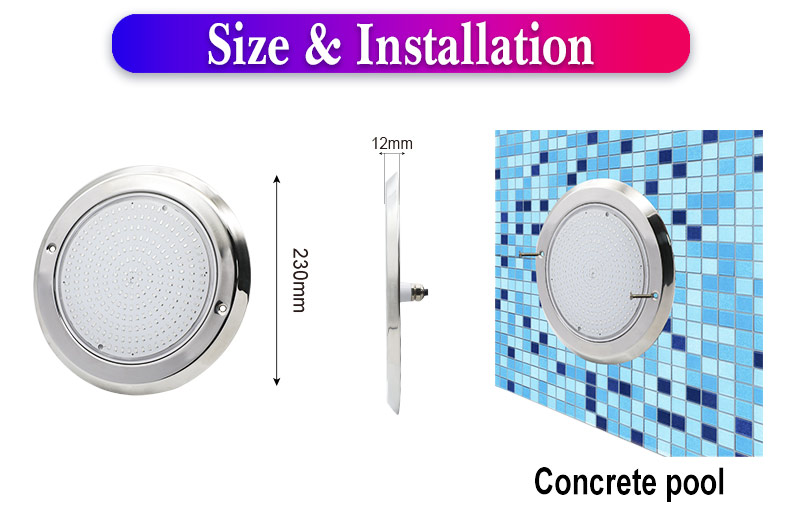

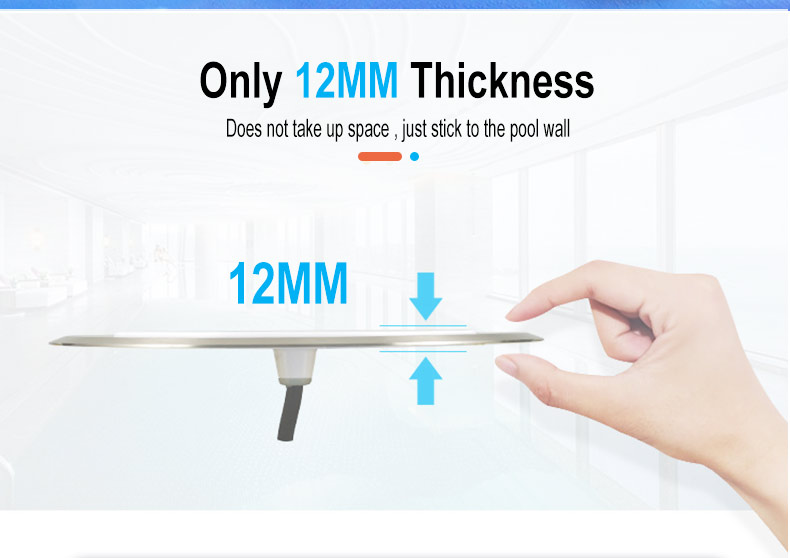

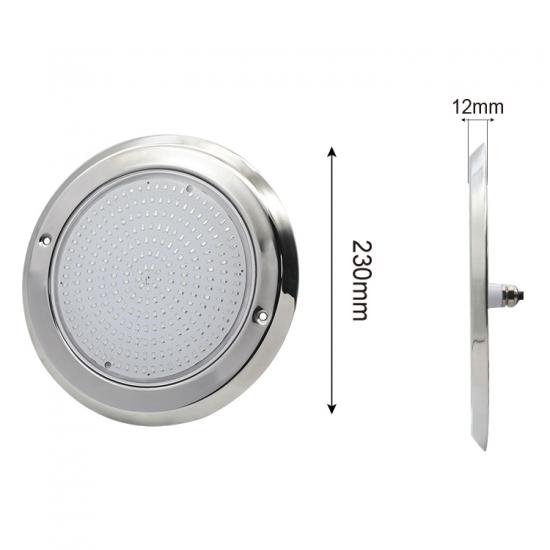

230mm diameter, 12mm thickness, SSframe with resin filled LED panel


Item: W4013-S252RGB  SS

Voltage: AC 12V

Frequency: 50-60Hz

Power: 18W

Efficiency: 0.825

Draving Mode: Constant Current

Shell material: SS , hollow

LED type: SMD2835 LED

LED color / quantity : RGB / RED 84pcs, blue 84pcs, green 84pcs , total 252pcs

LED Lumen : 800LM

Light collocating mode: without lens

Beam angle: 120°

Diameter : 230mm

Cable: 2M 2*1.0mm2

LED PN junction temperature : <65 ℃

Working temperature :0℃~40℃

Protection : IP68

Life span: 50,000 hours

Certification: CE & RoHS


Leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
