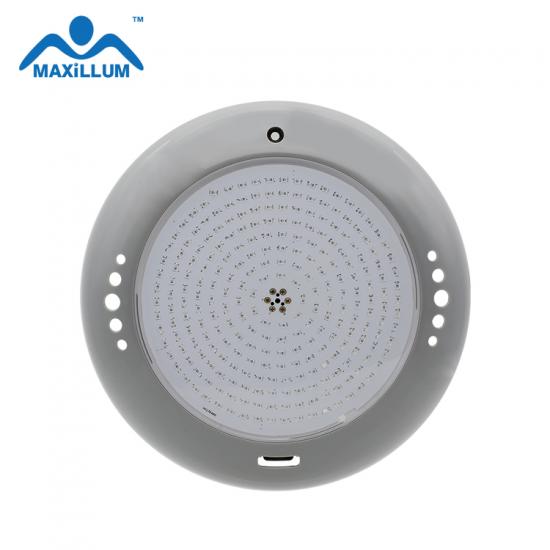

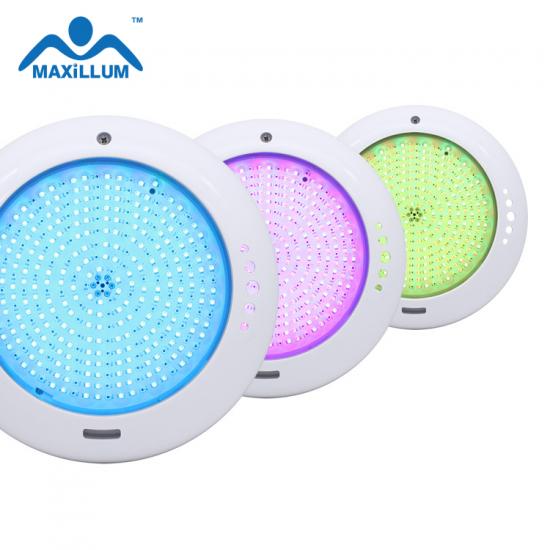

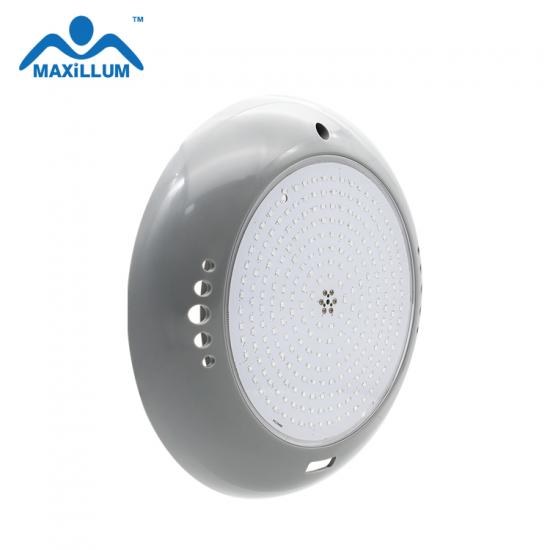

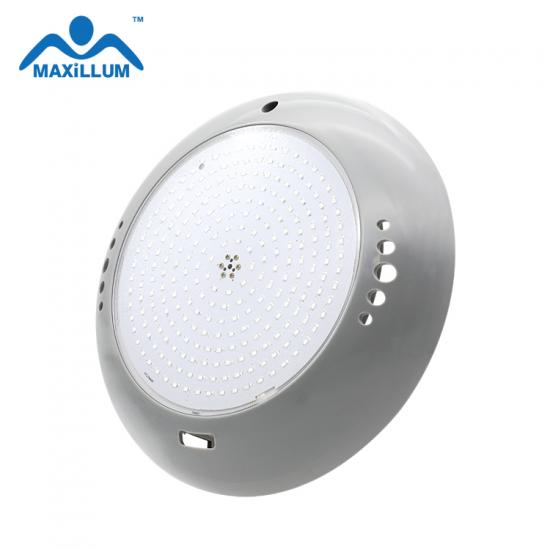

Wall Mounted Epoxy Pool Light 25W RGB Gray housing

Wall Mounted Epoxy Pool Light 25W RGB Gray frame

TECHNICAL PARAMETER

Swimming Pool Light , Epoxy Resin filled wall mounted light

Gray frame

Item:W2003G-S351RGB

Voltage: AC 12V

Frequency: 50-60Hz

Power: 25W

Efficiency: 0.825

Draving Mode: Constant Current

Shell material: ABS , hollow, gray color

LED type: SMD2835 LED

LED color / quantity : RED 117pcs, blue 117pcs, green 117pcs , total 351pcs

LED Lumen : 1100LM

Light collocating mode: without  lens

Beam angle: 120°

Diameter : 240mm

Cable: 2M 2*1.0mm2

Working temperature :0℃~40℃

Protection : IP68

Life span: 50000 hours

Certification: CE & RoHS

RGB ON/OFF WORKING PROGRAM

Cycles Working 15 Modes

1). Fixed blue

2). Fixed red

3). Fixed green

4). Fixed red/blue

5). Fixed blue/green

6). Fixed red/green

7). Fixed white

8). Cycle red-red/green-green.

9). Cycle green-green/blue-blue.

10). Cycle red-red/blue-blue.

11). Cycle red-green-blue. The speed change goes from low to quick.

12). Cycle red-green-blue. The speed change is slower than Mode 11.

13). Cycle green-red/blue-blue-red-white-blue/green-red/green.

14). Gradual change of all colors

15). Gradual change of red-green-blue
